Gen1 Flex 8EX MS (Mode Shift) System - 1TX, 1RX - 9-36VDC (12/24VDC)

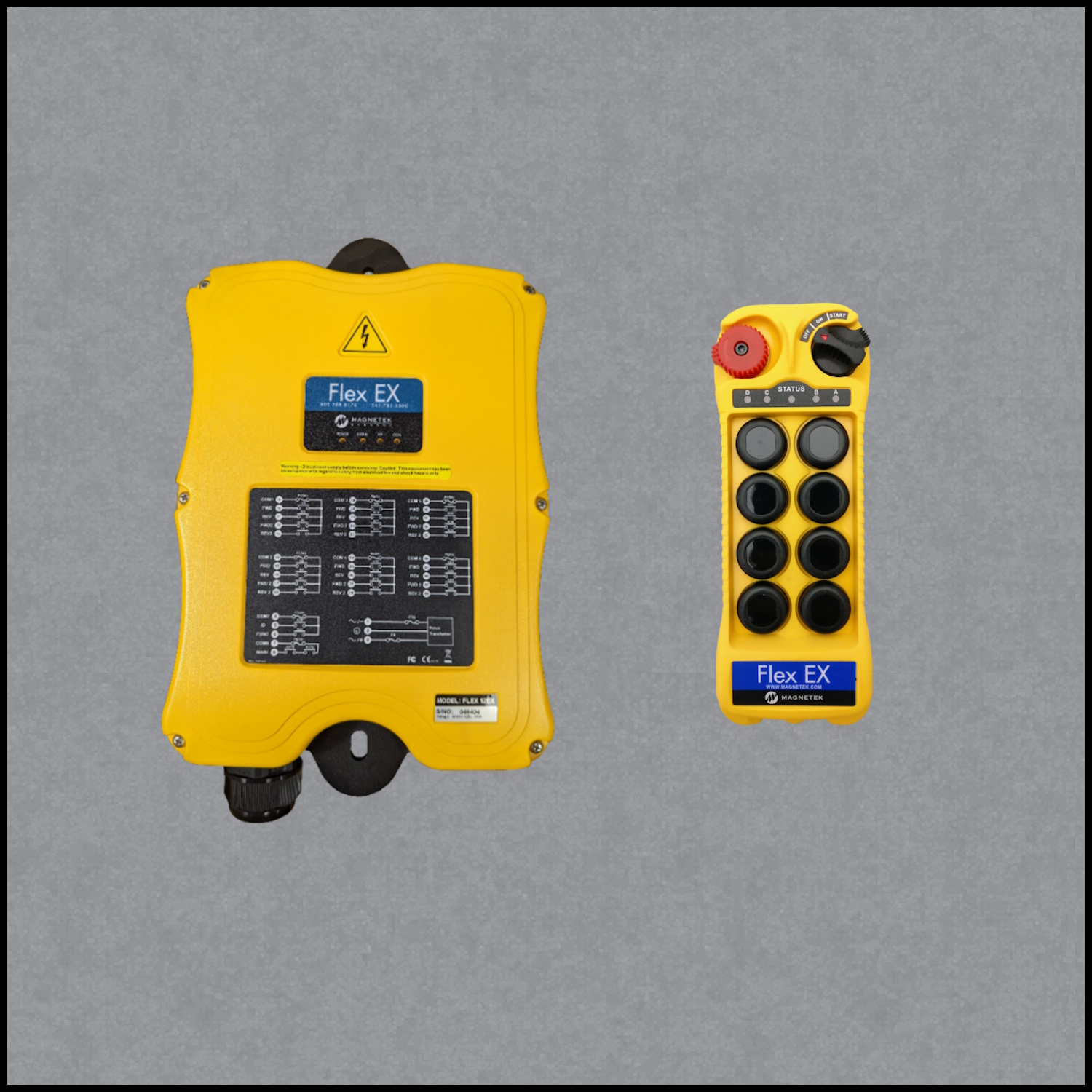

NEW Gen1 radio control system equipped for 4 motions. Model includes: One (1) transmitter with eight (8) 1-speed pushbuttons, e-stop, and On/Off/Start keyswitch. One (1) receiver designed for parallel installation with existing original wired pendant. Equipped for 9-36VDC (12/24VDC) The MS system allows a user to control 8 relays from the 8 buttons, and a 2nd set of 8 relay outputs when switched to the 2nd Mode/Menu ... for a total of 16 button presses controlling 16 relays ...... upon system startup, the menu/mode indicator light on the TX is A, and the user presses buttons 1-8 to control relays k1-k8 ... and when the user rotates the Start switch once to the Start position, the Menu/Mode switches from A to B (and the indicator light on the TX changes to B and now the user can use the same buttons to control relays k9-k16 .... special labeling can be ordered at an additional price for buttons to be labeled for the dual functions such as Fwd/Up .... where the Fwd would be from menu A, and the Up from menu B .. or another example with numbers would be "1/9" = (menu A = k1, and menu B = k9)
